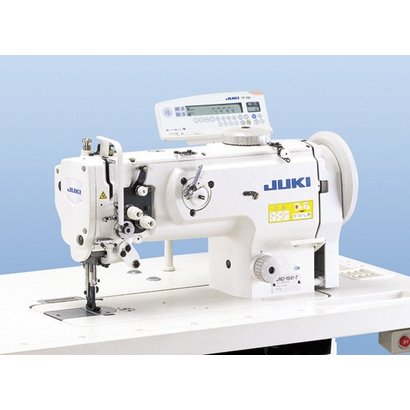

Juki Juki DNU1541 Walking Foot Needle Feed Industrial Sewing Machine Head Only

Juki Juki DNU1541 Walking Foot Needle Feed Industrial Sewing Machine Head Only

$1,489.00 Excl. tax
  • Availability: In stock (5)
Includes Big M Bobbin, 9mm Stitch Length, 9/16mm 5/8" Presser Foot Lift, Optional Power Stands (Replaces DNU241) ...More information

Product description

  • Brand:Juki
  • Availability: In stock (5)
  • Single Needle
  • Compound Needle Feed And Walking Foot
  • Speed up to 3000 Stitches Per Minute
  • 9 Mm Stitch Length
  • Industrial Upholstery Machine

Specifications

  • With its larger needlebar stroke, higher presser foot lift, and newly adopted double-tension mechanism, the machine offers excellent sewing capabilities and responsiveness
  • Alternating vertical movements of the walking foot and presser foot are as large as 6.5 mm
  • In addition, the ratio between alternating vertical movements of the walking foot and presser foot remains unchanged even when the material thickness changes
  • Rectangular feed prevents needle from fraying
  • Sews multi-layered parts of a material with consistent stitching pitch while preventing stitch gathering
  • When the thread is caught in the hook or any other sewing trouble occurs, the safety mechanism will automatically operate to prevent the machine from being damaged
  • Stitch length can be easily selected by the stitch dial
  • Includes a clear view of the area around the needle, placement of the bobbin thread winder on the front face of the machine arm, and a large handwheel
  • Knee-lifter mechanism is built in the bed which reduces the pressure required to operate facilities setup
  • Machine's full open-type top design makes adjusting works easier
  • Machine comes with a lubricating mechanism that uses a centralized oil wick which substantially reduces the time and trouble required for oiling the machine
  • A walking foot mechanism is built into the machine arm to prevent oil from scattering
  • Stitch length: 9 mm
  • Needle bar stroke: 36 mm
  • Presser foot lift clearance by hand: 9 mm
  • Presser foot lift clearance by knee: 16 mm
  • Hook type: Horizontal-axis full-rotary double-capacity hook
  • Needle: 135 x 17
  • Thread: #30
  • #5, B46
  • B138, Nm=60/3
  • 15/3
  • Distance from needle to machine arm: 10.3"
  • Weight of machine head: 80.47 lbs

Product Brochure
