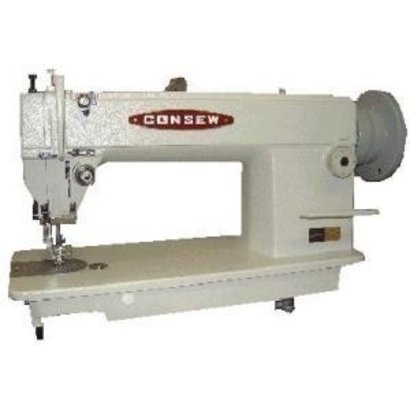

205RB Walking Foot Top Bottom Feed Upholstery Sewing Machine with Power Stand
Availability: | . |
Includes Table Stand Motor, 2000SPM Stitches Per Minute, Auto Oil Pan Lubrication Pump, Big M Bobbin, 6mm Presser Foot Lift by Hand or Knee Lever, 8mm Longest Stitch Length, 10.25" Arm Space.
Reverse Feed, Large Horizontal Axis Rotary Hook and Bobbin, Semi-Automatic Lubrication with Oil Pump, Single Needle, Drop Feed, Alternation Pressure Feet Lockstick Machine
Walking Foot without Compound Needle Feed is more suitable for feeding fabrics you don't want the needle going in and coming out at an angle as with needle feed.
Applications
For sewing medium to medium-heavy weight materials such as cloth, synthetics, vinyl, canvas, leather and various coated and laminated materials
Suitable for stitching operations on such products as leather coats, jackets, gloves, belts, wallets, handbags, briefcases and other travelware accessories, canvas products, auto and boat covers and tops, upholstery.
Features
- Independently adjustable upper and lower feeding mechanism
- Horizontal axis, gear driven rotary hook
- Large M bobbin
- Bobbin can be changed without removing object being sewn
- Positive walking feet
- Top and bottom feed mechanism insures even feeding of material
- Reverse stitching
- Maximum stitch length 3.2 s.p.i. (8mm)
- 2000 Max Stitches Per Minute
- Single Needle
- Walking Foot
- Drop Feed
- Alternating Presser Feet
- Includes Table, Stand, And Motor
- Upholstery Machine
Specifications
- For sewing medium to medium-heavy weight materials such as cloth, synthetics, vinyl, canvas, leather and various coated and laminated materials
- Suitable for stitching operations on such products as leather coats, jackets, gloves, belts, wallets, handbags, briefcases, and other travelware accessories
- Independently adjustable upper and lower feeding mechanism
- Horizontal axis, gear driven rotary hook
- Large bobbin
- Bobbin can be changed without removing object being sewn
- Positive walking feet
- Top and bottom feed mechanism insures even feeding of material
- Reverse stitching
- Maximum stitch length 3.2 s.p.i. (8 mm)
- Semi-automatic lubrication
- Maximum stitches per minute: 2000
- Presser foot lift by hand: 1/4" (6.5 mm)
- Presser foot lift by foot: 5/8" (16 mm)
- Needle bar stroke: 1-29/64" (37 mm)
- Stitch length maximum - 3.2 SPI (8 mm)
- Needle: 135 x 17
- Bobbin metal: 24311
- Bobbin pre-wound: M
- Bed size: 7" x 18-22/32" (178 x 475 mm)
- Work space: 10-5/16" (262 mm)
- Stitch type: 301
